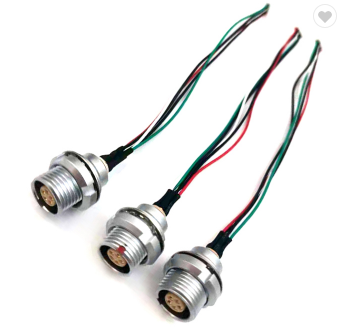

CE Circular plug socket self locking push pull connector FGG/EGG 0B 1B connector cable assembly

Description：CE Circular plug socket self locking push pull connector FGG/EGG 0B 1B connector cable assembly
Inquiry

Low voltage push-pull connectors for data, signal, electrical and power use!

YF connectors are used in instrumentation, medical devices, and anywhere a high density, high reliability, quick mating connector is needed.

These high precision connectors. With a life span greater than 5000 insertions, complete EMC shielding, shock resistance,
vibration resitance, and corrosion resistance this is the highest quality connector on the market.

Main features:
-Security of the push-pull self-latching system;
-Multipole types 2 to 26 contacts;
-Solder or print contacts(straight or elbow);
-High packing density for space savings;
-Multiple key options to avoid cross mating of similar connectors;
-Keying system for connector alignment;
-360°screening for full EMC shielding;
-Pull-away plugs with lanyards available.

Main Parameters:

Humidity (max)	<=95% [at 60 deg C /140 F]
Vibration	Vibration
Shock Resistance	100 g [ 6 ms]
Salt Spray Corrosion	>144 hr
Climatical Category	50/175/21
Shielding (min)	75 dB (10 MHz)
Shielding (min)	40 dB (1 GHz)
IP Rating	IP68
