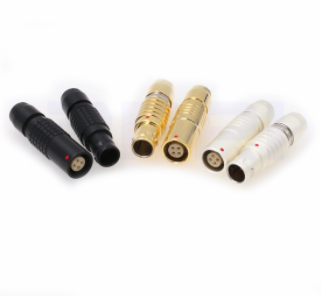

0B 1B PHG FGG 2 3 4 5 6 7 9 10 12 14 16 pin push-pull Circular connector black White Gold Blue Pink-gold color

● The rapid push-pull locking system;
● There are security locking system Welding, crimping and PCB-core-type connectors

● Minutes pin can choose to avoid the use of a machine similar to the connector between the mixed interpolation;
● The right direction shielding effect, anti-electromagnetic interference;

● Series of multi-core, high-density installation space-saving;

● Pin system, G pin as the standard for on-connector.

● Industry Application: It is widely used on all kinds of medical equipment's, specially for the signal transmission, Medical Equipment ,Audio / Video, Test and Measurement, Communications product line

Technical characteristics:
1. Endurance: > 5000 mating cycles;
2. Humidity : up to 95% at 60 degree;
3. Temperature range: -45 , +125 ;
4. .Resistance to vibration : 15 g[10 HZ-2000HZ];
5. Shock resistance: 100 g ,6 MS;
6. Salt spray corrosion test : > 48h;
7. Protection index (mated) : IP50.
